imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers > Class Template Reference

ChannelInternalForwarder handles the following situations. More...

#include <Imt.Base.Dff.ActiveParts/ChannelInternalForwarder.h>

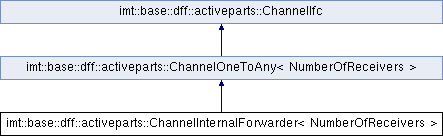

Inheritance diagram for imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers >:

Public Member Functions
	ChannelInternalForwarder (void)
	Constructor.
virtual	~ChannelInternalForwarder (void)
	Destructor.
virtual void	send (const uint16_t protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const pEventData=NULL, const int32_t eventDataSizeBytes=imt::base::dff::runtime::EVENTDATA_SIZE_BYTES)
void	connectToForwarderPort (PortOutput &forwarderPortOut)
	Connects the channel to a PortOutput of the ActivePartContainer boundary. More...
Public Member Functions inherited from imt::base::dff::activeparts::ChannelOneToAny< NumberOfReceivers >
	ChannelOneToAny (void)
	Constructor.
virtual	~ChannelOneToAny (void)
	Destructor.
void	connectPorts (PortOutput &portOut, const ReceiverIfc &portIn)
	Connect output port with input port via this channel. More...
Public Member Functions inherited from imt::base::dff::activeparts::ChannelIfc
virtual	~ChannelIfc (void)
	Destructor.

Detailed Description

template<uint32_t NumberOfReceivers>
class imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers >

ChannelInternalForwarder handles the following situations.

A port of an active part (X) inside a ActivePartContainer (C) has to be connected to a boundary port output of the ActivePartContainer (C) AND to other active parts inside the ActivePartContainer (C). Send Priority:

1. The active parts inside the ActivePartContainer (C) are informed
2. The boundary port output of the ActivePartContainer (C) is informed

Member Function Documentation

connectToForwarderPort()

template<uint32_t NumberOfReceivers>

void imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers >::connectToForwarderPort ( PortOutput &  forwarderPortOut )

inline

Connects the channel to a PortOutput of the ActivePartContainer boundary.

Parameters

forwarderPortOut

Port to forward to.

send()

template<uint32_t NumberOfReceivers>

virtual void imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers >::send ( const uint16_t  protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const  pEventData = NULL, const int32_t  eventDataSizeBytes = imt::base::dff::runtime::EVENTDATA_SIZE_BYTES  )

inlinevirtual

See also

ChannelIfc

Reimplemented from imt::base::dff::activeparts::ChannelOneToAny< NumberOfReceivers >.

---

The documentation for this class was generated from the following file:

• D:/_Work/10/s/Imt.Base/Imt.Base.Dff.ActiveParts/ChannelInternalForwarder.h
