imt::base::dff::activeparts::ActivePartAbs Class Reference

Abstract base class for an ActivePart. More...

#include <Imt.Base.Dff.ActiveParts/ActivePartAbs.h>

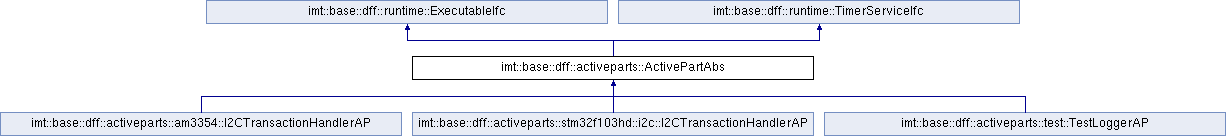

Inheritance diagram for imt::base::dff::activeparts::ActivePartAbs:

Public Member Functions
	ActivePartAbs (const imt::base::dff::runtime::RuntimePriority::Id priority, const imt::base::dff::runtime::ExecutableConfiguration executableConfiguration=imt::base::dff::runtime::ExecutableConfiguration())
	Constructor. More...
virtual	~ActivePartAbs (void)
	Destructor. More...
virtual const imt::base::dff::runtime::ExecutableConfiguration &	getExecutableConfiguration (void) const
virtual imt::base::dff::runtime::RuntimePriority::Id	getPriority (void) const
void	initialize (void)
	Initialize the active part. More...
void	start (void)
	Start the active part. More...
bool	isInitialized (void) const
	Check if active part is initialized. More...
bool	isStarted (void) const
	Check if active part is started. More...
virtual void	startOneShotTimer (imt::base::dff::runtime::RuntimeTimer::TimerHandle &timerToStart, const uint32_t timerTicksMs) const
	Starts or restarts the given one shot timer for this active part. More...
virtual void	startPeriodicTimer (imt::base::dff::runtime::RuntimeTimer::TimerHandle &timerToStart, const uint32_t intervalMs) const
	Start a periodic timer for this active part. More...
virtual void	killTimer (imt::base::dff::runtime::RuntimeTimer::TimerHandle &timerToKill) const
	Kill the given timer (if required). More...
Public Member Functions inherited from imt::base::dff::runtime::ExecutableIfc
virtual	~ExecutableIfc (void)
	Destructor. More...
virtual void	execute (const uint16_t protocolIdentifier, imt::base::core::serialization::Deserializer &deserializer)=0
	One-Shot function which is called once a message is ready to be processed. More...
Public Member Functions inherited from imt::base::dff::runtime::TimerServiceIfc
virtual	~TimerServiceIfc (void)
	Destructor. More...

Public Attributes
const PortInput &	PortIn
	Input Port of the active part (as a public visible read-only reference). More...

Protected Member Functions
virtual void	onInitialize (void)=0
	1st step = called by initialize(). More...
virtual void	onStart (void)=0
	2nd step = called by start(). More...

Detailed Description

Abstract base class for an ActivePart.

ActiveParts are objects which encapsulate their private state, behavior and data. They communicate to each other solely by exchanging messages.

Constructor & Destructor Documentation

ActivePartAbs()

imt::base::dff::activeparts::ActivePartAbs::ActivePartAbs ( const imt::base::dff::runtime::RuntimePriority::Id  priority, const imt::base::dff::runtime::ExecutableConfiguration  executableConfiguration = imt::base::dff::runtime::ExecutableConfiguration()  )

explicit

Constructor.

Parameters

priority	Priority of the active part.
executableConfiguration	Executable configuration

~ActivePartAbs()

virtual imt::base::dff::activeparts::ActivePartAbs::~ActivePartAbs ( void  )

virtual

Destructor.

Member Function Documentation

getExecutableConfiguration()

virtual const imt::base::dff::runtime::ExecutableConfiguration& imt::base::dff::activeparts::ActivePartAbs::getExecutableConfiguration ( void  ) const

virtual

See also

ExecutableIfc

Implements imt::base::dff::runtime::ExecutableIfc.

getPriority()

virtual imt::base::dff::runtime::RuntimePriority::Id imt::base::dff::activeparts::ActivePartAbs::getPriority ( void  ) const

virtual

See also

ExecutableIfc

Implements imt::base::dff::runtime::ExecutableIfc.

initialize()

void imt::base::dff::activeparts::ActivePartAbs::initialize

(

void

)

Initialize the active part.

Register in runtime and create internal connections.

isInitialized()

bool imt::base::dff::activeparts::ActivePartAbs::isInitialized

(

void

)

const

Check if active part is initialized.

Returns

True if active part is initialized.

isStarted()

bool imt::base::dff::activeparts::ActivePartAbs::isStarted

(

void

)

const

Check if active part is started.

Returns

True if acrive part is started.

killTimer()

virtual void imt::base::dff::activeparts::ActivePartAbs::killTimer ( imt::base::dff::runtime::RuntimeTimer::TimerHandle &  timerToKill ) const

virtual

Kill the given timer (if required).

Parameters

timerToKill

Handle of the timer to be killed.

Implements imt::base::dff::runtime::TimerServiceIfc.

onInitialize()

virtual void imt::base::dff::activeparts::ActivePartAbs::onInitialize ( void  )

protectedpure virtual

1st step = called by initialize().

Initialize the active part and if necessary the hardware peripherals. No messages should be sent at this stage, use onStart() function!

Implemented in imt::base::dff::activeparts::test::TestLoggerAP, imt::base::dff::activeparts::stm32f103hd::i2c::I2CTransactionHandlerAP, and imt::base::dff::activeparts::am3354::I2CTransactionHandlerAP.

onStart()

virtual void imt::base::dff::activeparts::ActivePartAbs::onStart ( void  )

protectedpure virtual

2nd step = called by start().

Starts the active part and send all initialization messages.

Implemented in imt::base::dff::activeparts::test::TestLoggerAP, imt::base::dff::activeparts::stm32f103hd::i2c::I2CTransactionHandlerAP, and imt::base::dff::activeparts::am3354::I2CTransactionHandlerAP.

start()

void imt::base::dff::activeparts::ActivePartAbs::start

(

void

)

Start the active part.

Here is the correct place to send the initialization messages.

startOneShotTimer()

virtual void imt::base::dff::activeparts::ActivePartAbs::startOneShotTimer ( imt::base::dff::runtime::RuntimeTimer::TimerHandle &  timerToStart, const uint32_t  timerTicksMs  ) const

virtual

Starts or restarts the given one shot timer for this active part.

In case of invalid parameters, timerToStart is set to an invalid time handle.

Parameters

timerToStart	Timer to be started.
timerTicksMs	Timer delay in milliseconds.

Implements imt::base::dff::runtime::TimerServiceIfc.

startPeriodicTimer()

virtual void imt::base::dff::activeparts::ActivePartAbs::startPeriodicTimer ( imt::base::dff::runtime::RuntimeTimer::TimerHandle &  timerToStart, const uint32_t  intervalMs  ) const

virtual

Start a periodic timer for this active part.

In case of invalid parameters, an invalid time handle is returned.

Parameters

timerToStart	Timer to be started.
intervalMs	Timer period in milliseconds.

Implements imt::base::dff::runtime::TimerServiceIfc.

Member Data Documentation

PortIn

const PortInput& imt::base::dff::activeparts::ActivePartAbs::PortIn

Input Port of the active part (as a public visible read-only reference).

Note

It is placed at the end because the instance has to be initialized before the reference

---

The documentation for this class was generated from the following file:

• D:/_Work/10/s/Imt.Base/Imt.Base.Dff.ActiveParts/ActivePartAbs.h
