imt::base::dff::activeparts::ChannelIfc Class Reference

Interface of a channel to transmit data to a receiver. More...

#include <Imt.Base.Dff.ActiveParts/ChannelIfc.h>

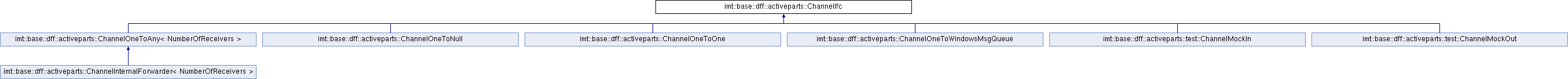

Inheritance diagram for imt::base::dff::activeparts::ChannelIfc:

Public Member Functions
virtual	~ChannelIfc (void)
	Destructor. More...
virtual void	send (const uint16_t protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const pEventData, const size_t eventDataSizeBytes)=0
	Send the given data to receiver through the scheduler. More...

Detailed Description

Interface of a channel to transmit data to a receiver.

ActiveParts are connected to each other via channels, which are for their part only connected to ports. Channels have the role of decoupling the sender from the receiver and handling the message transport.

Constructor & Destructor Documentation

~ChannelIfc()

virtual imt::base::dff::activeparts::ChannelIfc::~ChannelIfc ( void  )

inlinevirtual

Destructor.

Member Function Documentation

send()

virtual void imt::base::dff::activeparts::ChannelIfc::send ( const uint16_t  protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const  pEventData, const size_t  eventDataSizeBytes  )

pure virtual

Send the given data to receiver through the scheduler.

Parameters

protocolIdentifier	identifier of protocol, is required for the receiver to decode pEventData.
pEventData	pointer to serializable event data, can also be NULL.
eventDataSizeBytes	Max number of bytes of serialized event data.

Implemented in imt::base::dff::activeparts::ChannelInternalForwarder< NumberOfReceivers >, imt::base::dff::activeparts::ChannelOneToOne, imt::base::dff::activeparts::ChannelOneToNull, imt::base::dff::activeparts::ChannelOneToAny< NumberOfReceivers >, imt::base::dff::activeparts::test::ChannelMockOut, and imt::base::dff::activeparts::test::ChannelMockIn.

---

The documentation for this class was generated from the following file:

• D:/_Work/10/s/Imt.Base/Imt.Base.Dff.ActiveParts/ChannelIfc.h
