imt::base::bsp::driver::GpioDriver Class Reference

Driver to access a single general purpose input / output (GPIO) pin. More...

#include <Imt.Base.BSP/Driver/GpioDriver.h>

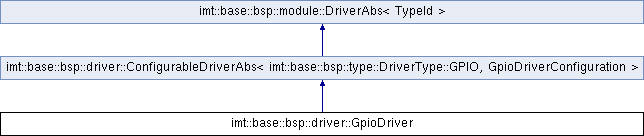

Inheritance diagram for imt::base::bsp::driver::GpioDriver:

Public Member Functions
	GpioDriver (const size_t indexModule, const size_t indexDriver)
	Constructor. More...
virtual	~GpioDriver (void)
	Destructor. More...
bool	isInput (void) const
	Gets if the pin is configured as an input. More...
bool	isOutput (void) const
	Gets if the pin is configured as an output. More...
imt::base::bsp::type::ErrorCode::Id	read (bool *const pState) const
	Reads the current state of the pin. More...
imt::base::bsp::type::ErrorCode::Id	write (const bool state)
	Writes the current state of the pin. More...
Public Member Functions inherited from imt::base::bsp::driver::ConfigurableDriverAbs< imt::base::bsp::type::DriverType::GPIO, GpioDriverConfiguration >
	ConfigurableDriverAbs (const size_t indexModule, const size_t indexPin)
	Constructor. More...
virtual	~ConfigurableDriverAbs (void)
	Destructor. More...
imt::base::bsp::type::ErrorCode::Id	configure (const GpioDriverConfiguration &configuration)
	Configures the driver. More...
const GpioDriverConfiguration &	getConfiguration (void) const
	Gets the last accepted configuration. More...
Public Member Functions inherited from imt::base::bsp::module::DriverAbs< TypeId >
	DriverAbs (const size_t indexModule, const size_t indexDriver)
	Constructor. More...
virtual	~DriverAbs (void)
	Destructor. More...
void	initialize (void)
	Initialize the driver. More...
void	enable (void)
	Enable the driver. More...
imt::base::bsp::type::ErrorCode::Id	start (void)
	Starts the driver. More...
imt::base::bsp::type::ErrorCode::Id	stop (void)
	Stops the driver. More...
size_t	getIndexDriver (void) const
	Gets the index of the driver inisde the module. More...
size_t	getIndexModule (void) const
	Gets the index of the module the driver is part of. More...
imt::base::bsp::type::DriverType::Id	getType (void) const
	Gets the type of the driver. More...
bool	isInitialized (void) const
	Gets if the driver has been initialzied. More...
bool	isEnabled (void) const
	Gets if the driver has been enabled. More...
bool	isStarted (void) const
	Gets if the driver has been started. More...

Protected Member Functions
virtual void	onInitialize (void)
virtual void	onEnable (void)
virtual imt::base::bsp::type::ErrorCode::Id	onStart (void)
virtual imt::base::bsp::type::ErrorCode::Id	onStop (void)
virtual imt::base::bsp::type::ErrorCode::Id	onReconfigure (const Configuration &configuration)

Additional Inherited Members
Public Types inherited from imt::base::bsp::driver::ConfigurableDriverAbs< imt::base::bsp::type::DriverType::GPIO, GpioDriverConfiguration >
typedef GpioDriverConfiguration	Configuration
	The type of the driver configuration. More...
Static Public Attributes inherited from imt::base::bsp::module::DriverAbs< TypeId >
static const imt::base::bsp::type::DriverType::Id	Type = TypeId
	Constant holding the driver type. More...

Detailed Description

Driver to access a single general purpose input / output (GPIO) pin.

Constructor & Destructor Documentation

GpioDriver()

imt::base::bsp::driver::GpioDriver::GpioDriver ( const size_t  indexModule, const size_t  indexDriver  )

explicit

Constructor.

Parameters

indexModule	Index of the module (starting at 0).
indexDriver	Index of the driver (starting at 0).

~GpioDriver()

virtual imt::base::bsp::driver::GpioDriver::~GpioDriver ( void  )

virtual

Destructor.

Member Function Documentation

isInput()

bool imt::base::bsp::driver::GpioDriver::isInput

(

void

)

const

Gets if the pin is configured as an input.

Returns

true Pin is an input false Pin is an output or not configured.

isOutput()

bool imt::base::bsp::driver::GpioDriver::isOutput

(

void

)

const

Gets if the pin is configured as an output.

Returns

true Pin is an output false Pin is an input or not configured.

onEnable()

virtual void imt::base::bsp::driver::GpioDriver::onEnable ( void  )

protectedvirtual

See also

DriverAbs

Implements imt::base::bsp::module::DriverAbs< TypeId >.

onInitialize()

virtual void imt::base::bsp::driver::GpioDriver::onInitialize ( void  )

protectedvirtual

See also

DriverAbs

Implements imt::base::bsp::module::DriverAbs< TypeId >.

onReconfigure()

virtual imt::base::bsp::type::ErrorCode::Id imt::base::bsp::driver::GpioDriver::onReconfigure ( const Configuration &  configuration )

protectedvirtual

See also

ConfigurableDriverAbs

Implements imt::base::bsp::driver::ConfigurableDriverAbs< imt::base::bsp::type::DriverType::GPIO, GpioDriverConfiguration >.

onStart()

virtual imt::base::bsp::type::ErrorCode::Id imt::base::bsp::driver::GpioDriver::onStart ( void  )

protectedvirtual

See also

DriverAbs

Implements imt::base::bsp::module::DriverAbs< TypeId >.

onStop()

virtual imt::base::bsp::type::ErrorCode::Id imt::base::bsp::driver::GpioDriver::onStop ( void  )

protectedvirtual

See also

DriverAbs

Implements imt::base::bsp::module::DriverAbs< TypeId >.

read()

imt::base::bsp::type::ErrorCode::Id imt::base::bsp::driver::GpioDriver::read

(

bool *const

pState

)

const

Reads the current state of the pin.

Parameters

pState

Set to the current state of the pin: false=low, true=high.

Returns

OK State could be read. INVALID_ARGUMENT Null pointer passed. UNINITIALIZED Pin is not configured as input.

write()

imt::base::bsp::type::ErrorCode::Id imt::base::bsp::driver::GpioDriver::write

(

const bool

state

)

Writes the current state of the pin.

Parameters

state

When true the pin is set to high, otherwise to low.

Returns

OK State could be read. UNINITIALIZED Pin is not configured as digital output.

---

The documentation for this class was generated from the following file:

• D:/_Work/10/s/Imt.Base/Imt.Base.BSP/Driver/GpioDriver.h
