imt::base::dff::activeparts::PortOutput Class Reference

Messages can be sent on the output port. More...

#include <Imt.Base.Dff.ActiveParts/PortOutput.h>

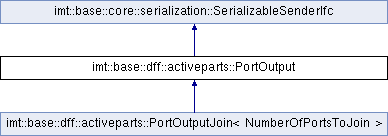

Inheritance diagram for imt::base::dff::activeparts::PortOutput:

Public Member Functions
	PortOutput (void)
	Constructor. More...
virtual	~PortOutput (void)
	Destructor. More...
virtual void	write (const uint16_t protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const pEventData, const size_t eventDataSizeBytes)
	Write data to port (is sent via the ChannelIfc) More...
virtual void	setChannel (ChannelIfc &channel)
	Set the channel to transport the message. More...
const ChannelIfc *	getChannel (void) const
	Get the read only pointer to the channel. More...
Public Member Functions inherited from imt::base::core::serialization::SerializableSenderIfc
virtual	~SerializableSenderIfc (void)
	Destructor. More...

Protected Member Functions
ChannelIfc *	getChannel (void)
	Get the modifiable pointer to the channel. More...

Detailed Description

Messages can be sent on the output port.

An ActivePart can have 0 to N output ports.

Constructor & Destructor Documentation

PortOutput()

imt::base::dff::activeparts::PortOutput::PortOutput

(

void

)

Constructor.

~PortOutput()

virtual imt::base::dff::activeparts::PortOutput::~PortOutput ( void  )

virtual

Destructor.

Member Function Documentation

getChannel() [1/2]

ChannelIfc* imt::base::dff::activeparts::PortOutput::getChannel ( void  )

protected

Get the modifiable pointer to the channel.

Returns

Pointer to the channel

getChannel() [2/2]

const ChannelIfc* imt::base::dff::activeparts::PortOutput::getChannel

(

void

)

const

Get the read only pointer to the channel.

Returns

Pointer to the channel

setChannel()

virtual void imt::base::dff::activeparts::PortOutput::setChannel ( ChannelIfc &  channel )

virtual

Set the channel to transport the message.

Parameters

channel

Channel to be set

Reimplemented in imt::base::dff::activeparts::PortOutputJoin< NumberOfPortsToJoin >.

write()

virtual void imt::base::dff::activeparts::PortOutput::write ( const uint16_t  protocolIdentifier, const imt::base::core::serialization::SerializableIfc *const  pEventData, const size_t  eventDataSizeBytes  )

virtual

Write data to port (is sent via the ChannelIfc)

Parameters

protocolIdentifier	identifier of protocol, is required for the receiver
pEventData	pointer to serializable event data, can also be NULL
eventDataSizeBytes	Maximum size of the serialized event data in bytes. Used to determine whether to use a small or normal event for sending.

Implements imt::base::core::serialization::SerializableSenderIfc.

---

The documentation for this class was generated from the following file:

• D:/_Work/10/s/Imt.Base/Imt.Base.Dff.ActiveParts/PortOutput.h
